Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft

Name: Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft
Brand: ZHONGHENG
Price: 5000 USD

Buy cheap Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft product

Brand Name : ZHONGHENG

Model Number : ZH120

Certification : CE/SGS/ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD5000-8000/set

Supply Ability : 50 sets/months

Delivery Time : 25 working days

Packaging Details : Packed in plastic film cover

Weight : 4.2t

The bearing : Harbin type 6207

The machine material : welding comprise of 12 square pipe

Production time : 20 days

Warranty : 2 years

color : blue

Contact Now

Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft

Applications:

The shutter door and window,is the customer suggest the size and drawing of the profile,we make the machine according to the drawing.The advantage of the saw cutting is no waste.

Competitive Advantage:

1. save space

2. easy installation

3. perfect service

4. excellent quality

5. Operate easily

Specification

NO.	ITEM		PARAMETER	NOTE
1.	Suitable material	Type	steel strip
		Width(mm)	105mm
		Thickness(mm)	0.3-0.8mm
		Yield stress(mm)	G220-G300
2.	Product specifications	Detail as the attached file
2.	Product specifications	Length	Any length
3.	Power requirement	Type	380v/3ph/50hz	Motor brand shanghai Lichao
		Main Motor power	3kw
		Cutter power	4kw
4.	Forming speed(m/min)		8m/min	Not include the time of cutting
5.	Forming stand		13	Depend on actual design
6.	Thickness of structure		14mm
7.	Forming shaft diameter(mm)		40 solid
8.	Type of cutting		Roll formed and length-set cutting
9.	Control system		PLC and inverter
10.	Install dimension(depend on the final design)		4.2m×0.8m×1m	Without panel length
11.	Total weight (Approx)		2.6T	Depend on final design

Description:

NO	Name	Unit	Qty
1	Man-made decoiler	set	1
2	Main machine for roll forming	set	1
3	Control system	set	1
4	Hydraulic system	set	1

Process sketch

Uncoiling the sheet --- Infeed guiding --- Roll forming --- Rectifying the straightness ---

--- Measure length --- Cutting the panel --- panels to the supporter (option: automatic stacker).

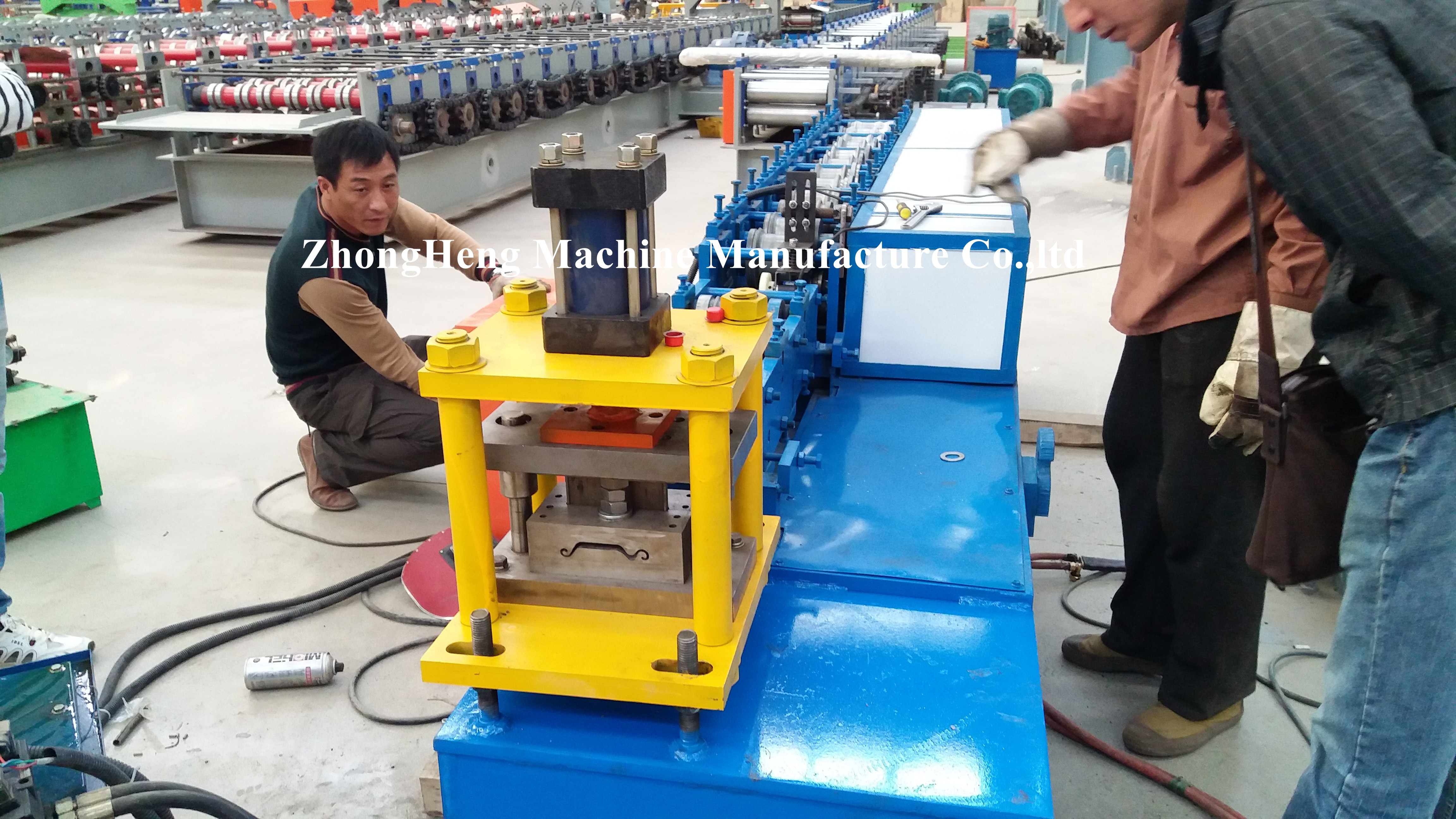

Machine picture

Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft
