Metal Structure C Channel Roll Forming Machine For Shaft Bearing Steel 24 m / min

Name: Metal Structure C Channel Roll Forming Machine For Shaft Bearing Steel 24 m min
Brand: ZHONGHENG
Price: 34500 USD

Buy cheap Metal Structure C Channel Roll Forming Machine For Shaft Bearing Steel 24 m / min product

Brand Name : ZHONGHENG

Model Number : ZH80-300

Certification : ce/sgs/iso9001

Place of Origin : China

MOQ : 1 set

Price : USD34500-38000/SET

Supply Ability : 60Set/month

Delivery Time : 45 working days

Packaging Details : Packed in plastic film cover

pump power : 15KW

shaft diameter : 80

feeding thickness : 1.2-3mm

backboard thickness : 20mm

cutter standard : CR12

Cr-Plating size : 0.05mm

Contact Now

Metal Structure C Channel Roll Forming Machine For Shaft Bearing Steel 24 m / min

Description:

The purlin roll forming line includes in: hydraulic expansion decoiler , leveling equipment, roll forming system, punching equipment ,cutting equipment, hydraulic station, electric controlling system and supporter for purlin.

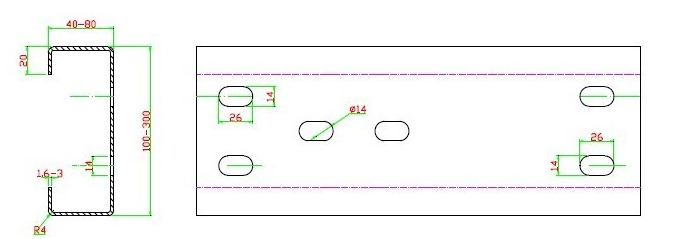

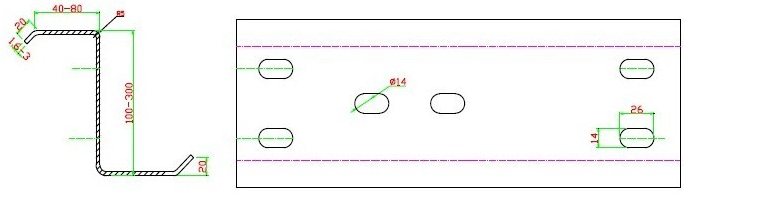

Profile

Flow chart

Specification

No.	main parameter of making machine
1	Suitable to process	Color steel plate
2	Width of the plate	220mm
3	Roller	12 rows
4	Dimensions	76007501910mm
5	Power	22+7.5kw
6	Thickness of the plate	2-3mm
7	Productivity	10m/min
8	Material of the cutting blade	Cr12
9	Diameter of the roller	Φ90mm
10	Weight	About 11T
11	Voltage	380V 50Hz 3phases
14	Control system	PLC control

Componse

Name	Quanlity	Description
De-coiler	1 set	MAX bearing: 5.0T
Levelling device	1 set	Material:GCr15
Roll forming part	1 set	GCr15(GCr12 available)
Straighting device	1 set	GCr15/45# steel
Hydraulic mold cutting	1 set	Cutting material: Cr12/Cr12MoV/Cr12 (total three blades are equiped with these cutting sets)
Product discharge rack	1 set	6m

Competitive Advantage:
1. Heavy Duty
2. Save space
3. Strong machine body
4. High Efficency
Application
The finished products are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

Metal Structure C Channel Roll Forming Machine For Shaft Bearing Steel 24 m / min

Product Tags:

c channel roll forming machine

roll forming machinery

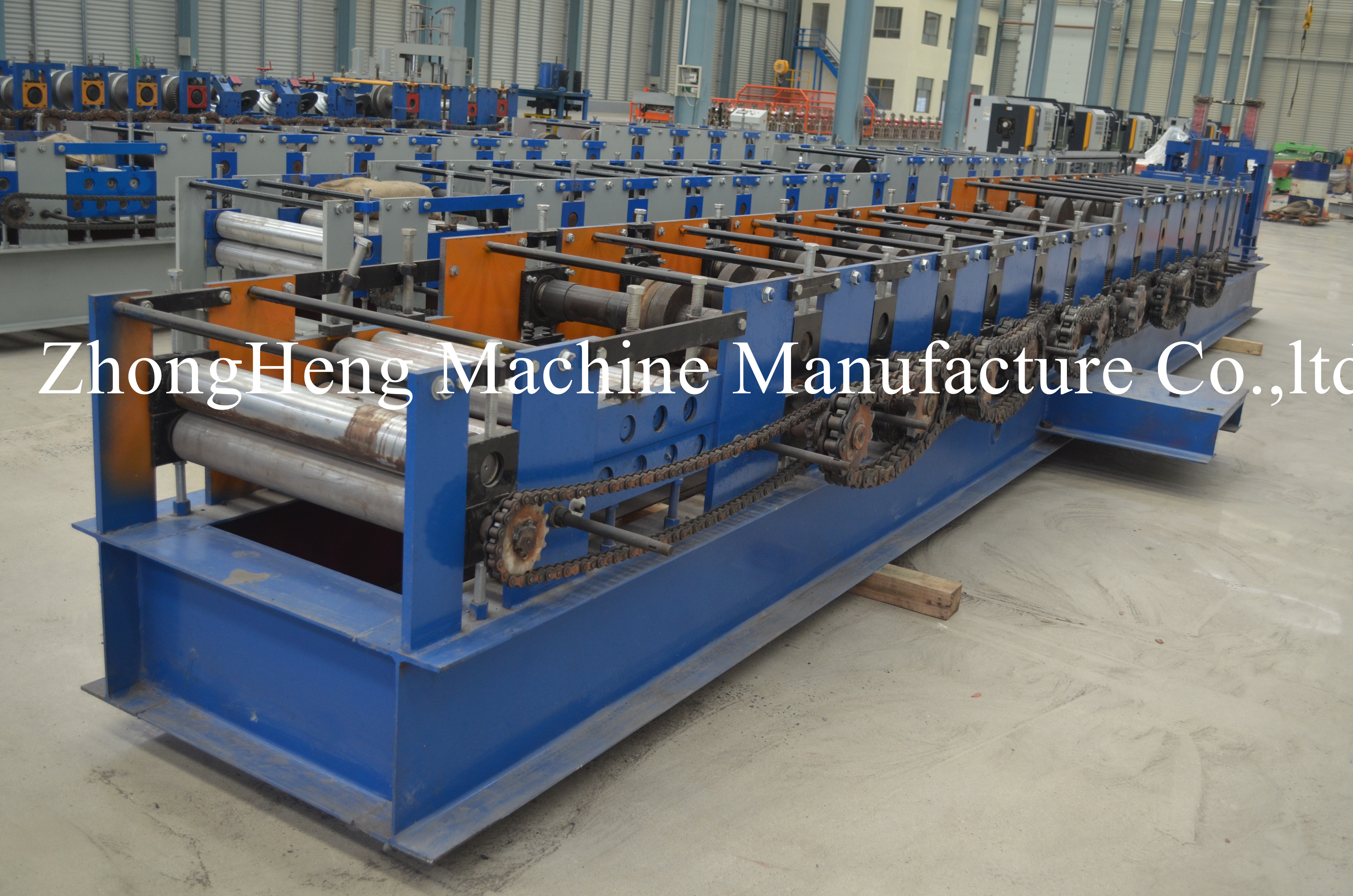

Metal Structure C Channel Roll Forming Machine For Shaft Bearing Steel 24 m / min Images
