312 W Section / Highway Guardrail Forming Machine 3.2mm Thickness Gearbox Control

Name: 312 W Section Highway Guardrail Forming Machine 32mm Thickness Gearbox Control
Brand: ZHONGHENG
Price: 45000 USD

Buy cheap 312 W Section / Highway Guardrail Forming Machine 3.2mm Thickness Gearbox Control product

Brand Name : ZHONGHENG

Model Number : ZH310

Certification : CE/SGS

Place of Origin : CHINA

MOQ : 1 set

Price : USD 45000-60000/set

Supply Ability : 10 sets/months

Delivery Time : 60 working days

Packaging Details : packaged by waterproof film cover

Drive system : Gearbox

Type : Guardrail forming machine

Thickness : 2.5mm-3.5mm

Usage : Guardrail

Power : 47kw

Warranty : 2 years

Aftersale service : engineer available

Chains : 2 inch

Contact Now

312 W section guardrail roll forming machine with 3.2mm thickness material by gearbox control

Applications:

The fianl products are High speed road guard rail,standard model (two waves and three waves are both

popular).Its usually used in Govenment project.Form properly .

Description:

This machine is hot sale all over the world.The easy installation is impressed by customers.For 3.2mm thickness galvanized steel,it need a large power to push the rollers,gearbox is a good solution.

Competitive Advantage:

1). Take the EUROPEAN Quality Standard;

2). Choose the Best Material and Components.

3). Over 30-Year-Experienced Experts and Top International Sales to Care Your Needs.

4). Offer The Highest Quality but The Best Price in Prevailing Market.

5). Customize for You.

Specifications

Item:		Specification:	Notes:
1.Information of raw material	Suitable material:	Galvanized coil
	Width:	475 mm
	Thickness:	2.5-2.8mm
	Yield strength:	Q235A
2.Production specification	Detailed as the file
3.Power requirement:	Main power:	22kw two sets	With inventor (normal standard)
	Cutter power:	15kw(pressure:25mpa) 3 pcs cutter	With inventor (normal standard)
	Speed of machine:	10-15meters/min
5.Hydraulic de-coiler:	Loading:	5tons	Main power:3kw
	Inner diameter	508mm
	Type:	Automatic type
6.Machine specification:	Structure:	400I beam	Transform method : Chains transform
	Roll stations:	20 roll stations (with 7pcs rollers for leveling diameter:80mm)
	Splint thickness:	22mm
	Diameter of shaft:	110mm,
	Material of shaft:	Forged 45# steel
	Type of cutting:	Saw cutting
	Material of roller:	GCr15 with heat treatment: HRC58-62
	Sizes of machine:	15.51.01.5meters
	Material of punching mold:	Cr12,hydraulic pre-punching
	Sizes of chain:	2.0inch

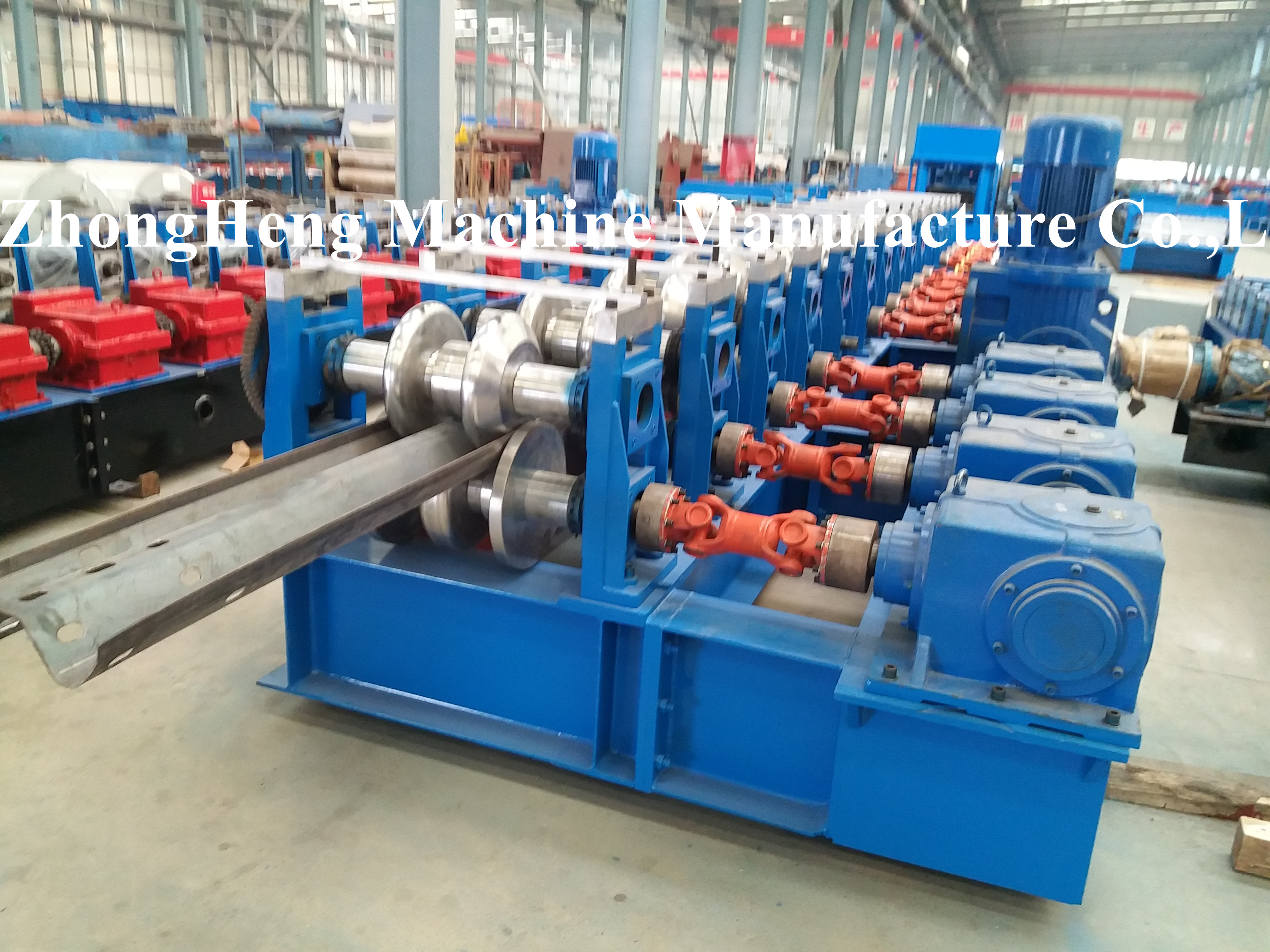

Machine picture

312 W Section / Highway Guardrail Forming Machine 3.2mm Thickness Gearbox Control

Welcome contact with me.

Whatsapp / wechat : +8615133711731 shirly
