Colored Steel Corrugated Roof Sheet Roll Forming Machine With Cut To Length Devices

Product Categories
ZhongHeng Machine Manufacture Co.,Ltd
Contact Now

Colored Steel Corrugated Roof Sheet Roll Forming Machine With Cut To Length Devices

  • 1
  • 2

Brand Name : ZHONGHENG

Model Number : ZH27-200-1000

Certification : ce/sgs

Place of Origin : China

MOQ : 1 set

Price : USD 22500-32000

Supply Ability : 30 sets /month

Delivery Time : 25 working days

Packaging Details : plastic film cover

Material : PPGI

Diameter of the shaft : 75mm solid

Motor : 5.5kw

Pump : 4kw

Speed : 10-15m/min

Chains : double 0.6 inch

Contact Now

      colored steel Corrugated Roof Sheet Roll Forming Machine with cut to length devices



Colored Steel Corrugated Roof Sheet Roll Forming Machine With Cut To Length DevicesColored Steel Corrugated Roof Sheet Roll Forming Machine With Cut To Length Devices



A. General

Suitable Material
No. Item Parameter Note
1 Suitable Type PPGI & PPGL
  Width 1220mm
Material Thickness 0.30—0.80mm
  Yield stress 240Mpa TO 550Mps
2 Product Cover width 1000mm±2mm Refer to drawing
  Wave height 28±1mm
Specs Pitch Width 200±2mm
  Length Any length
3 Machine Active shaft No. 45 steel
  Roller 70mm and No. 45 steel Chrome plated
Material Cutting Blade SKD11
4 Power Requirement Type 440AC/50HZ Customized
  Main motor 15Kw
  Hydraulic 4kw
5 Speed Forming Speed 4-8m/min Excludes Cutting
Hydraulic Type Automatic with coil car
  Max. Capacity 10 T
6 Automatic Suitable coil OD 1200mm
  Suitable coil ID 508mm
Decoiler Max Coil width 1250mm
  Uncoiling style Active uncoiling
7 Forming Stand About 22-24 groups Complete full rollers
8 Transmission style Chain, sprocket Entire chain
9 Main machine structure Guide column or wallboard
10 Type of Cutting length-set cutting
Q235 or equivalent
Material Thickness 0.25-0.8 mm
Material Width 914, 1000, 1200, 1220 or 1250, as per the drawing
Dimension About 5.9*1.3*1.1m(L*W*H) , as per the drawing
Working Space About 15.9*2.8m(L*W) , as per the drawing

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.
Cutting

Automatically stop and cutting when it comes to the set

length.



B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.
Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

 Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.





3. machine pictures

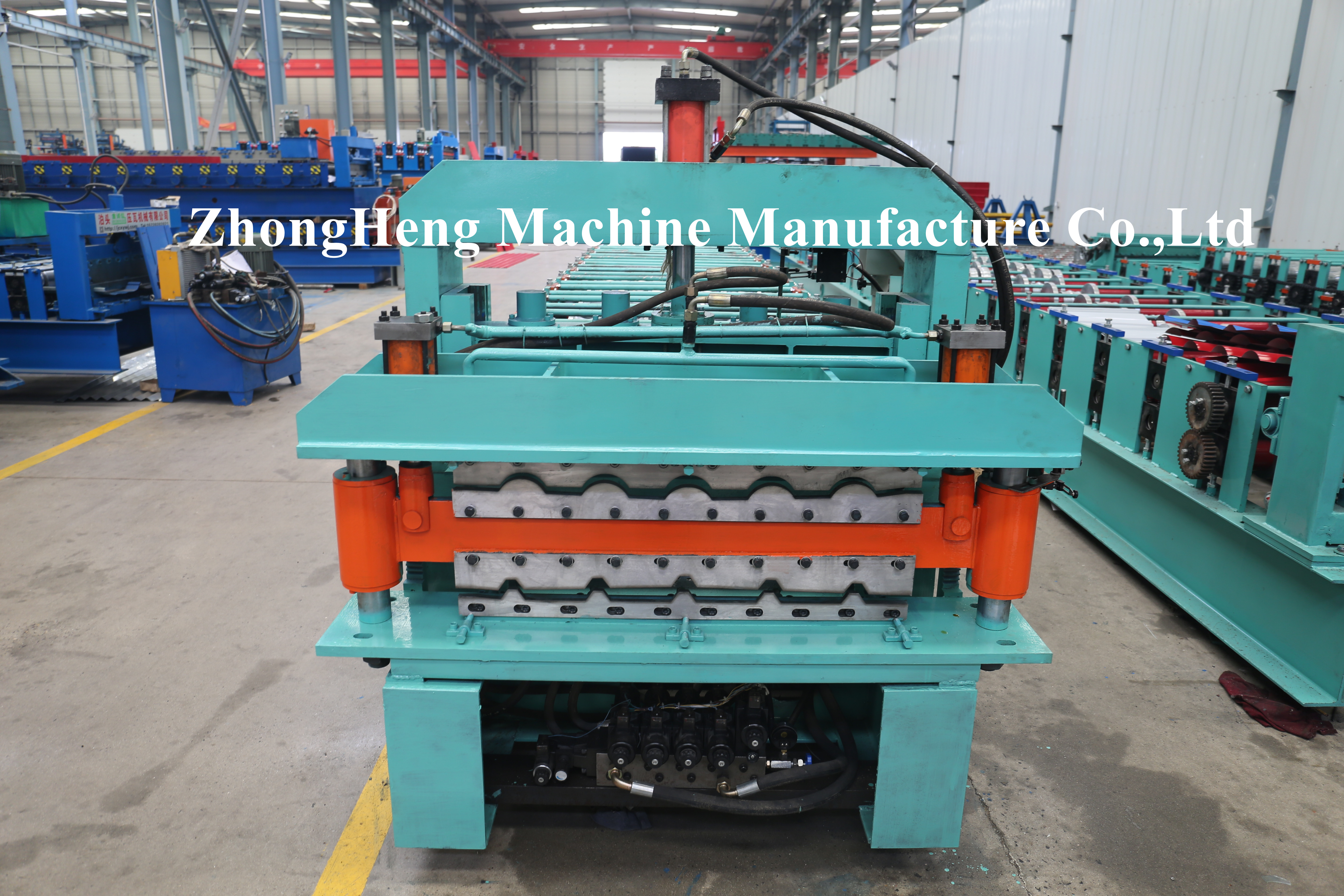

Colored Steel Corrugated Roof Sheet Roll Forming Machine With Cut To Length Devices

Colored Steel Corrugated Roof Sheet Roll Forming Machine With Cut To Length Devices
